Technical Data
Single
Double
Model
CSM200
CSM200
Product capacity (kg/hour)
70-140
140- 280
Electrical supply 3ph- 50Hz
400V
400V
Electrical power (kW)
20 kW
40 kW
Steam working capacity
8 bar
8 bar
Steam consumption
150 kg/hr
300 kg/hr
Air consumption (nl/hr)
500 nl/hr
1000 nl/hr
Water consumption
1200 nl/hr
500 nl/hr
SUGAR COOK MIX SYSTEM (WARMMIX)
The warmix cooking system consists of a weiging tank which collects all the ingredients. After mixing and dissolving the mix is dumped into the SCM batch cooker. This system is very accurate and is designed to manufactre jellies, milky candies , caramel, marsh mallows. A vacuum system can be added to cool the mass before adding the heat sensitive products like fondant and gelatine.

Home   /    About us   /     Customer support   /     Projecting    /    Manufacturing    /     Contacts    /       Services    /       2nd Hand

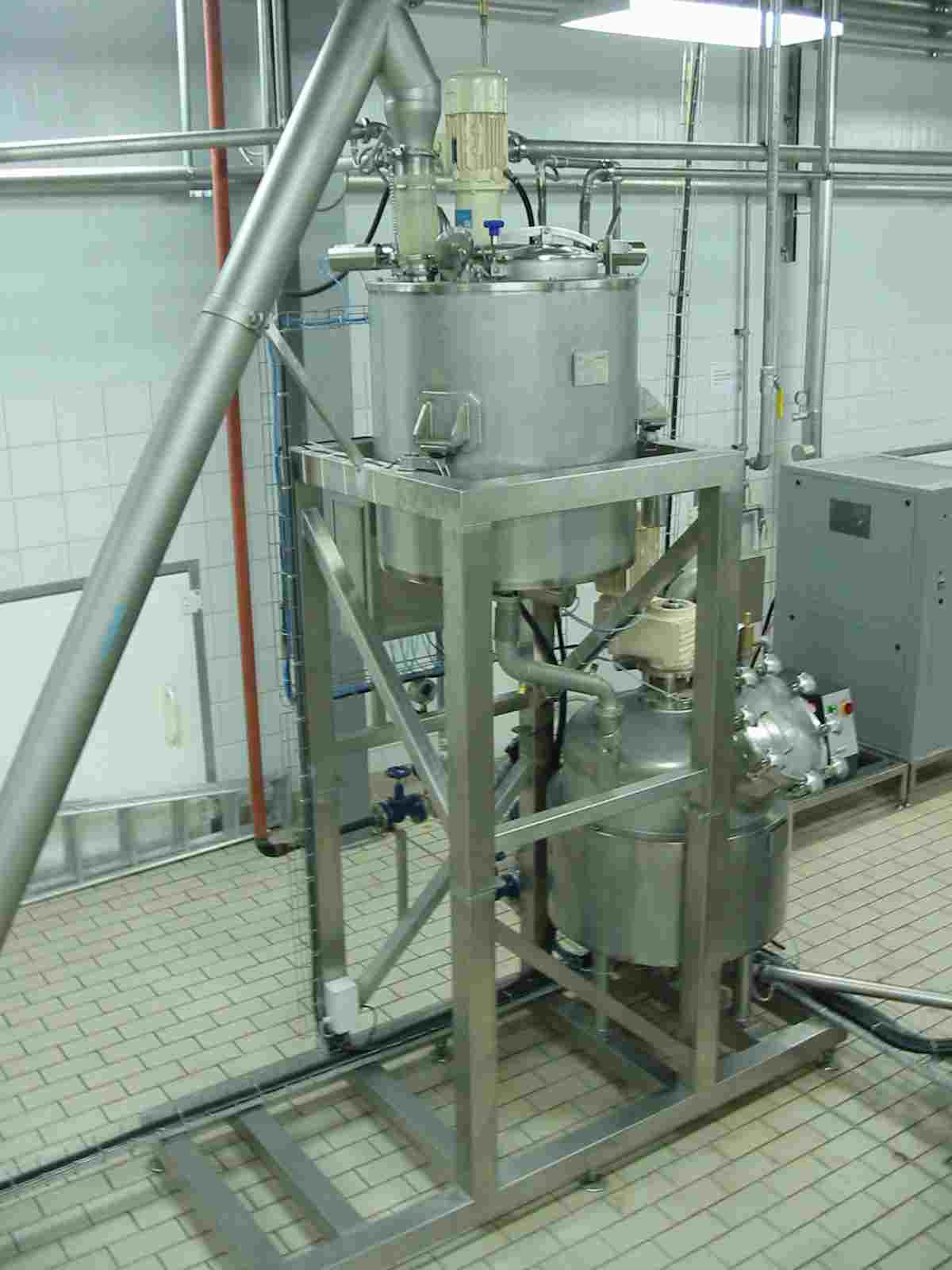

BATCHWEIGHER AND BATCHCOOKER FOR CARAMEL
